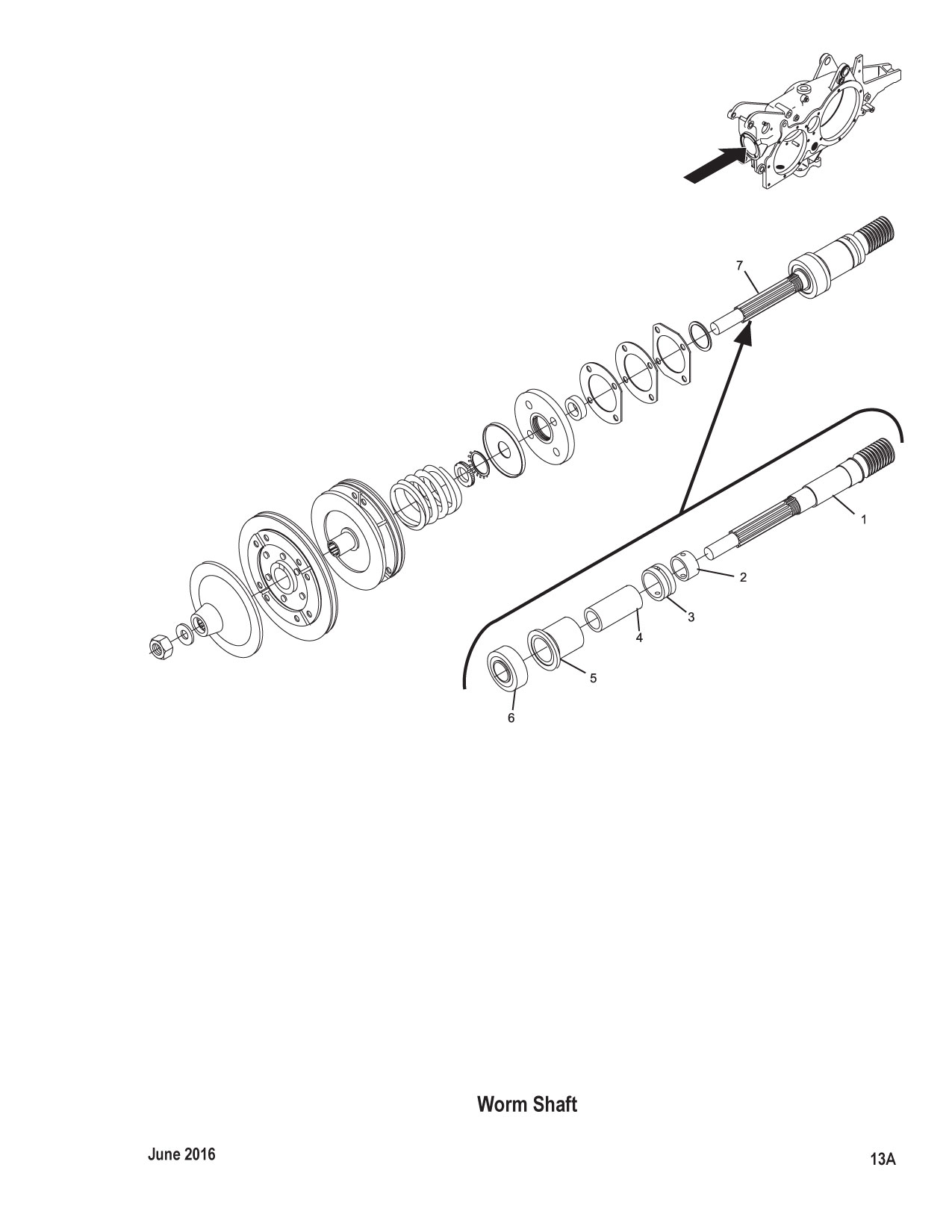

A2 Worm Shaft (1)
1. 12-860171-000
1. 12-860722-000
2. 11-450200-000
3. 11-450100-000
4. 12-100185-002
5. 12-100066-000
6. 11-432002-000
7. 12-860172-000
8. 12-862861-000 N/A See Below
Gear Box Input Rebuilt Kit includes:
12-100146-000 Clutch Shoe (2)
12-100168-002 Pin (1)
12-100168-003 Pin (1)
12-860626-000 Clutch Drive Disc (1)
12-860613-000 Clutch Drive Disc (1)
12-100257-000 Hex Head Socket Cap Screw (1)
11-530015-000 External Retaining Ring (2)
11-190016-001 Flat Washer (7/16”) (2)
12-860717-000 Clutch Pulley Assembly (1)
12-860172-000 60:1 Worm Shaft Assembly (1)
11-125201-001 Nut, Hex Jam (2)
9. 12-860660-000
